32000系列 交/直流电子负载
32000系列交/直流电子负载内建16位元A/D及DSP等精准的量测电路，提供了精确的量测值，量测项目共有电压均方根值（Vrms）、电流均方根值（Arms）、瓦特值（Watt）、伏安（VA）、波峰因素（CF）、功率因素（PF）、总谐波失真率（THD）、电压总谐波失真率（VTHD）、电流总谐波失真率（ITHD）、峰值电流（Ipeak）、电流最大值（Amax）、电流最小值（Amin）、电压最大值（Vmax）、电压最小值（Vmin）。
产品性能特点
四个电表可同时显示电压值(Vrms, Vpeak, Vmax., Vmin)、电流值(Irms, Ipeak, Imax., Imin.)、瓦特值、伏安值(VA)、频率值、峰值因素、功率因素、电压失真度(VTHD, VH)、电流失真度(ITHD, IH)等。
交/直流负载具定电流、线性定电流、定电阻、定电压、定功率及整流性负载等工作模式。
频率范围 : DC, 40～440Hz。
峰值因素可调范围 : 1.4～5.0。
功率因素可调范围 : 0～1 超前或落后（-1～1）。
高达八台的并联可达 90KW 及三相△或 Y 的负载同步控制。
可外部电压控制 定电流、线性定电流、定电阻、定电压、定功率等工作模式
过电压警示、过电流、过功率、过温度保护。
GPIB/RS232/LAN/USB 控制之介面功能。
可储存/呼叫 150 种电子负载状态设定，节省测试时间。
支援带载开机；先设定Load ON 便可支持带载开机，逆变器或不断电电源开机时便直接带着所设定负载电流开机，用来验证Inverter连接电器时启动是否稳定。
支援抽载与卸载角度控制；吃载卸载角度控制，0-359度全范围都可设定，用来验证实际电器插拔时，Inverter输出电压暂态反应是否稳定，Overshoot/Undershoot 是否在容许范围内。
支援正半周或负半周抽载；用来验证实际电器只有正半周或负半周负载电流时，Inverter 输出电压是否维持稳定。
支援SCR/TRIAC的电流调变波形，90度Trailing edge及Leading Edge。
最齐全的量测功能

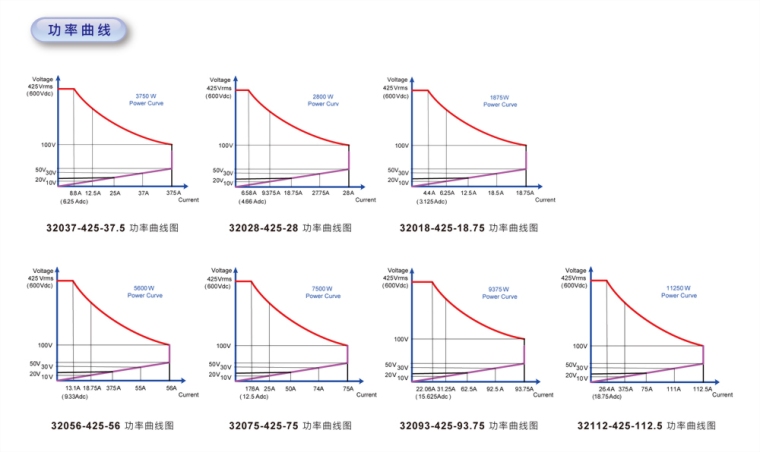

选型表
MODEL | 32037-425-37.5 | 32028-425-28 | 32018-425-18.75 |
Power (W) | 3750 W | 2800W | 1875 W |
Current (Ampere) | 37.5 Arms / 112.5Apeak | 28 Arms / 84Apeak | 18.75 Arms / 56.25Apeak |
Voltage (Volt) | 50～425Vrms / 600Vdc | ||
MODEL | 32056-425-56 | 32075-425-75 | 32093-425-93.75 | 32112-425-112.5 |
Power (W) | 5600 W | 7500 W | 9375W | 11250W |
Current (Ampere) | 56.0 Arms / 168Apeak | 75.0 Arms / 225Apeak | 93.75 Arms / 281.25Apeak | 112.5 Arms / 337.5Apeak |
Voltage (Volt) | 50～425Vrms / 600Vdc | |||
技术参数
规 格 | |||
MODEL | 32037-425-37.5 | 32028-425-28 | 32018-425-18.75 |
Power (W) | 3750 W | 2800W | 1875 W |
Current(Ampere) | 37.5 Arms / 112.5Apeak | 28 Arms / 84Apeak | 18.75 Arms / 56.25Apeak |
Voltage(Volt) | 50～425Vrms / 5～600Vdc | ||
Slew Rate(DC) | 50μs | ||
FREQUENCY Range | DC,40～440Hz (CC,CP Mode) , DC～440Hz (LIN,CR,CV Mode) | ||
PROTECTIONS | |||
Over Power Protection | 3937.5 Wrms or Programmable | ≒ 2940 Wrms or Programmable | ≒ 1968.75 Wrms or Programmable |
Over Current Protection | 39.375 Arms or Programmable | ≒ 29.4 Arms or Programmable | ≒ 19.687 Arms or Programmable |
Over Vlotage Protection | ≒ 446.25 Vrms / 630Vdc | ||
Over Temp. Protection | Yes | ||
OPERATION MODE | |||
Constant Current Mode for Sine-Wave | |||
Range | 0 ～ 37.5A | 0 ～ 28A | 0 ～ 18.75A |
Resolution | 0.625mA / 16bits | 0.5mA / 16bits | 0.3125mA / 16bits |
Accuracy | ±（ 0.1% of setting ＋ 0.2% of range ）@ 50/60Hz , ± 0.5% of（ setting ＋ range ） | ||
Linear Constant Current Mode for Sine-Wave, Square-Wave or Quasi-Square Wave, PWM Wave | |||
Range | 0～37.5A | 0 ～ 28A | 0 ～ 18.75A |
Resolution | 0.625mA / 16bits | 0.5mA / 16bits | 0.3125mA / 16bits |
Accuracy | ±（ 0.1% of setting ＋ 0.2% of range ）@ 50/60Hz , ± 0.5% of（ setting ＋ range ） | ||
Constant Resistance Mode | |||
Range | 1.6 ohm ～ 32K ohm | 2.0 ohm ～ 40K ohm | 3.2 ohm ～ 64K ohm |
Resolution *1 | 0.010416mS / 16bits | 0.0083333mS / 16bits | 0.0052083mS / 16bits |
Accuracy | ±0.5% of （setting ＋ range）@ 50/60Hz , ±（ 0.5% of setting ＋ 2% of range ） | ||
Constant Voltage Mode | |||
Range | 50～425Vrms / 5～600Vdc | ||
Resolution | 0.1V | ||
Accuracy | ±0.2% of（ setting ＋ range）@ 50/60Hz , ±0.4% of（ setting ＋ range） | ||
Constant Power Mode | |||
Range | 3750W | 2800W | 1875W |
Resolution | 0.1W | 0.1W | 0.1W |
Accuracy | ±0.5% of ( setting + range ) @ 50/60Hz , ±2% of ( setting + range ) | ||
CREST FACTOR (CC & CP MODE ONLY) | |||
Range | 2～5 | ||
Resolution | 0.1 | ||
Accuracy | (0.5% / Irms) + 1%F.S. | ||
POWER FACTOR (CC & CP MODE ONLY) | |||
Range | 0～1 Lag or Lead | ||
Resolution | 0.01 | ||
Accuracy | 1%F.S. | ||
MEASUREMENTS | |||
VOLTAGE READBACK V METER | |||
Range | 425Vrms/600Vdc | ||
Resolution | 0.01V | ||
Accuracy | ±0.1% of (reading ＋range) | ||
Parameter | Vrms, V Max / Min, +/-Vpk | ||
CURRENT READBACK A METER | |||
Range | 18.75Arms / 37.5Arms | 14Arms / 28Arms | 9.375Arms / 18.75Arms |
Resolution | 0.4mA / 0.8mA | 0.3mA / 0.6mA | 0.2mA / 0.4mA |
Accuracy | ±0.1% of（ reading ＋ range）@ 50/60Hz , ±0.2% of（ reading ＋ range） | ||
Parameter | Irms,I Max / Min,+ / -Ipk | ||
WATT READBACK W METER | |||
Range | 3750W | 2800W | 1875W |
Resolution | 0.0625W | 0.05W | 0.03125W |
Accuracy | ±0.5% of ( reading + range ) @ 50/60Hz , ±2% of ( reading + range ) | ||
VA METER | Vrms×Arms Correspond To Vrms and Arms | ||
Power Factor METER | |||
Range | +/- 0.000～1.000 | ||
Accuracy | ± ( 0.002 ± ( 0.001 / PF ) * F ) | ||
Frequency METER (Hz) | |||
Range | DC,40～440Hz | ||
Accuracy | 0.1% | ||
Other Parameter METER | |||
VA, VAR, CF_I, Ipeak, Imax., Imin. Vmax., Vmin., IHD, VHD, ITHD, VTHD | |||
OTHERS | |||
Start up loading | Yes , Power on loading during Inverter / UPS start up | ||
Load ON / OFF Angle | 0 ～ 359 degree can be programmed for the angle of load ON and load OFF loading | ||
Half cycle and SCR/TRIAC loading | Postive or Negative half cycle, 90˚ Trailing edge or Leading edge current waveform can be programmed | ||
Master/Slave (3 Phase Application) | Yes, 1 master and upto 7 slave units | ||
External programming input | F.S / 10Vdc, Resulotion 0.1V | ||
External SYNC input | TTL | ||
Vmonitor ( Isolated ) | ±600V / ±10V | ||
Imonitor ( Isolated ) | ±112.5Apk / ±10Vpk | ±84Apk / ±10Vpk | ±56.25Apk / ±10Vpk |
Interface ( OPTION ) | GPIB RS-232 LAN USB | ||
MAX. Power consumption | 150VA | ||
Operation Temperature *2 | 0 ～ 40 C | ||
Current of input impedance (mA) @50/60Hz ; @400Hz | ～ V*0.6 ～ V*4.4 | ～ V*0.45 ～ V*3.3 | ～ V*0.3 ～ V*2.2 |
Dimension ( H x W x D ) | 177 x 440 x 558 mm | ||
Weight | 33.5Kg | 27.5Kg | 21.5Kg |
规 格 | ||||
MODEL | 32056-425-56 | 32075-425-75 | 32093-425-93.75 | 32112-425-112.5 |
Power (W) | 5600 W | 7500 W | 9375W | 11250W |
Current(Ampere) | 56 Arms / 168Apeak | 75 Arms / 225Apeak | 93.75 Arms / 281.25Apeak | 112.5 Arms / 337.5Apeak |
Voltage(Volt) | 50～425Vrms / 5～600Vdc | |||
Slew Rate(DC) | 50μs | |||
FREQUENCY Range | DC,40～440Hz (CC,CP Mode) , DC～440Hz (LIN,CR,CV Mode) | |||
PROTECTIONS | ||||
Over Power Protection | ≒ 5880Wrms or Programmable | ≒7875Wrms or Programmable | ≒9843.75Wrms or Programmable | ≒11812.5Wrms or Programmable |
Over Current Protection< | ||||
