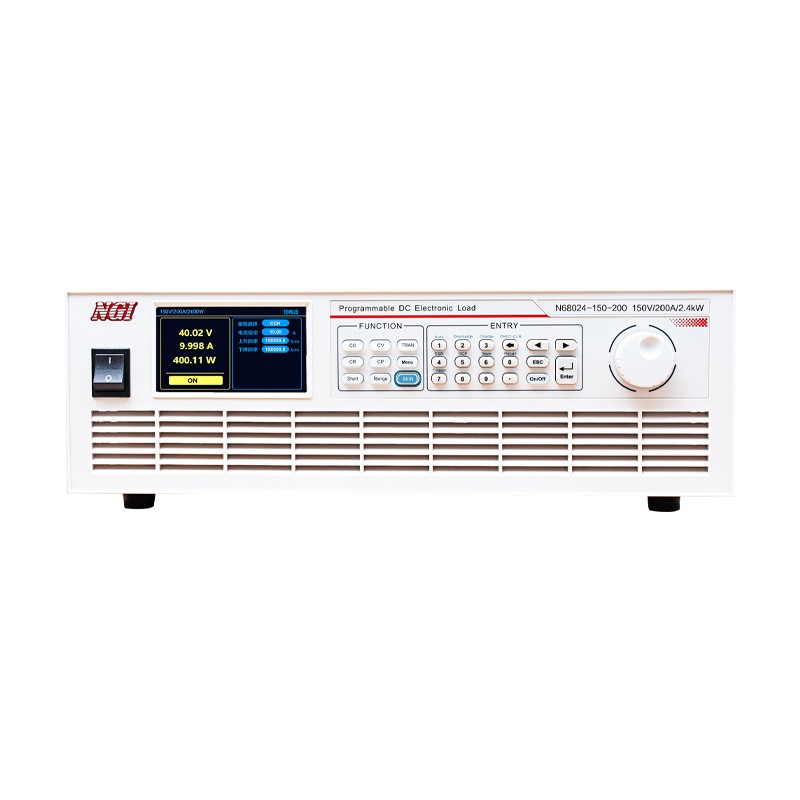

大功率直流电子负载N68000型
关注：217
型号：N68000
产地：上海
产品详情
N68000大功率直流电子负载为NGI公司基于多年电源、车载充电机、蓄电池、超级电容等相关测试应用经验而开发一款高可靠性、高精度、高性价比全功能直流电子负载产品。NGI公司不仅在引进国际先进技术的基础上针对性地进行了多项优化设计；还根据产品实际应用增大了产品选型密度，功率等级覆盖2.4KW、3.6KW、4.8KW、6.0KW、7.2KW、8.4KW、9.6KW、10.8KW、12KW、13.2KW、14.4KW，****为客户选型提供便利，提高测试精度、节省购置成本。
N68000系列 选型表
| 型号 | 通道数 | 电压 | 电流 | 功率 | 精度 | 分辨率 | 通讯接口 | 尺寸 |
|---|---|---|---|---|---|---|---|---|
| N68024-150-200 | 1 | 150V | 200A | 2,400W | 电压≤0.05%+0.05%F.S./电流≤0.05%+0.1%F.S. | 1mV/1mA | LAN/RS232/CAN | 3U |
| N68024-150-060 | 1 | 150V | 60A | 2,400W | 电压≤0.05%+0.05%F.S./电流≤0.05%+0.1%F.S. | 1mV/0.1mA | LAN/RS232/CAN | 3U |
| N68024-600-020 | 1 | 600V | 20A | 2,400W | 电压≤0.05%+0.05%F.S./电流≤0.05%+0.1%F.S. | 1mV/0.1mA | LAN/RS232/CAN | 3U |
| N68024-600-060 | 1 | 600V | 60A | 2,400W | 电压≤0.05%+0.05%F.S./电流≤0.05%+0.1%F.S. | 1mV/0.1mA | LAN/RS232/CAN | 3U |
| N68024-1000-020 | 1 | 1000V | 20A | 2,400W | 电压≤0.05%+0.05%F.S./电流≤0.05%+0.1%F.S. | 10mV/0.1mA | LAN/RS232/CAN | 3U |
| N68024-1000-060 | 1 | 1000V | 60A | 2,400W | 电压≤0.05%+0.05%F.S./电流≤0.05%+0.1%F.S. | 10mV/0.1mA | LAN/RS232/CAN | 3U |
| N68036-150-300 | 1 | 150V | 300A | 3,600W | 电压≤0.05%+0.05%F.S./电流≤0.05%+0.1%F.S. | 1mV/1mA | LAN/RS232/CAN | 3U |
| N68036-150-090 | 1 | 150V | 90A | 3,600W | 电压≤0.05%+0.05%F.S./电流≤0.05%+0.1%F.S. | 1mV/0.1mA | LAN/RS232/CAN | 3U |
| N68036-600-030 | 1 | 600V | 30A | 3,600W | 电压≤0.05%+0.05%F.S./电流≤0.05%+0.1%F.S. | 1mV/0.1mA | LAN/RS232/CAN | 3U |
| N68036-600-090 | 1 | 600V | 90A | 3,600W | 电压≤0.05%+0.05%F.S./电流≤0.05%+0.1%F.S. | 1mV/0.1mA | LAN/RS232/CAN | 3U |
| N68036-1000-030 | 1 | 1000V | 30A | 3,600W | 电压≤0.05%+0.05%F.S./电流≤0.05%+0.1%F.S. | 10mV/0.1mA | LAN/RS232/CAN | 3U |
| N68036-1000-090 | 1 | 1000V | 90A | 3,600W | 电压≤0.05%+0.05%F.S./电流≤0.05%+0.1%F.S. | 10mV/0.1mA | LAN/RS232/CAN | 3U |
| N68048-150-400 | 1 | 150V | 400A | 4,800W | 电压≤0.05%+0.05%F.S./电流≤0.05%+0.1%F.S. | 1mV/1mA | LAN/RS232/CAN | 6U |
| N68048-150-120 | 1 | 150V | 120A | 4,800W | 电压≤0.05%+0.05%F.S./电流≤0.05%+0.1%F.S. | 1mV/1mA | LAN/RS232/CAN | 6U |
| N68048-600-040 | 1 | 600V | 40A | 4,800W | 电压≤0.05%+0.05%F.S./电流≤0.05%+0.1%F.S. | 1mV/0.1mA | LAN/RS232/CAN | 6U |
| N68048-600-120 | 1 | 600V | 120A | 4,800W | 电压≤0.05%+0.05%F.S./电流≤0.05%+0.1%F.S. | 1mV/1mA | LAN/RS232/CAN | 6U |
| N68048-1000-040 | 1 | 1000V | 40A | 4,800W | 电压≤0.05%+0.05%F.S./电流≤0.05%+0.1%F.S. | 10mV/0.1mA | LAN/RS232/CAN | 6U |
| N68048-1000-120 | 1 | 1000V | 120A | 4,800W | 电压≤0.05%+0.05%F.S./电流≤0.05%+0.1%F.S. | 10mV/1mA | LAN/RS232/CAN | 6U |
| N68060-150-500 | 1 | 150V | 500A | 6,000W | 电压≤0.05%+0.05%F.S./电流≤0.05%+0.1%F.S. | 1mV/1mA | LAN/RS232/CAN | 6U |
| N68060-150-150 | 1 | 150V | 150A | 6,000W | 电压≤0.05%+0.05%F.S./电流≤0.05%+0.1%F.S. | 1mV/1mA | LAN/RS232/CAN | 6U |
| N68060-600-050 | 1 | 600V | 50A | 6,000W | 电压≤0.05%+0.05%F.S./电流≤0.05%+0.1%F.S. | 1mV/0.1mA | LAN/RS232/CAN | 6U |
| N68060-600-150 | 1 | 600V | 150A | 6,000W | 电压≤0.05%+0.05%F.S./电流≤0.05%+0.1%F.S. | 1mV/1mA | LAN/RS232/CAN | 6U |
| N68060-1000-050 | 1 | 1000V | 50A | 6,000W | 电压≤0.05%+0.05%F.S./电流≤0.05%+0.1%F.S. | 10mV/0.1mA | LAN/RS232/CAN | 6U |
| N68060-1000-150 | 1 | 1000V | 150A | 6,000W | 电压≤0.05%+0.05%F.S./电流≤0.05%+0.1%F.S. | 10mV/1mA | LAN/RS232/CAN | 6U |
| N68072-150-600 | 1 | 150V | 600A | 7,200W | 电压≤0.05%+0.05%F.S./电流≤0.05%+0.1%F.S. | 1mV/1mA | LAN/RS232/CAN | 6U |
| N68072-150-180 | 1 | 150V | 180A | 7,200W | 电压≤0.05%+0.05%F.S./电流≤0.05%+0.1%F.S. | 1mV/1mA | LAN/RS232/CAN | 6U |
| N68072-600-060 | 1 | 600V | 60A | 7,200W | 电压≤0.05%+0.05%F.S./电流≤0.05%+0.1%F.S. | 1mV/0.1mA | LAN/RS232/CAN | 6U |
产品发布日期：2026.01.26
