微型CCLD加速度计4516
仪器产地：国产加速度计

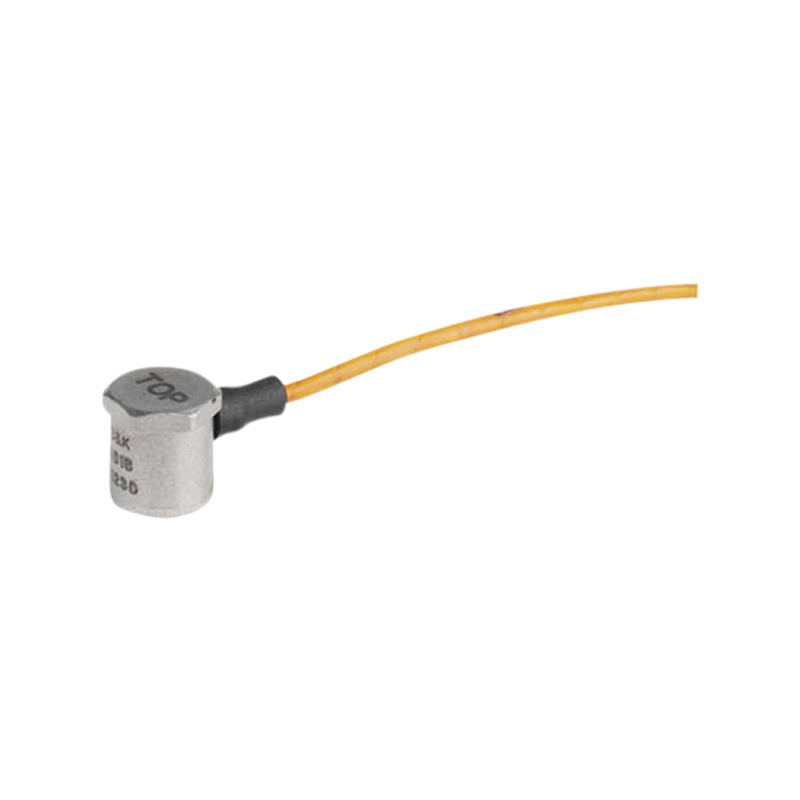

4516 微型CCLD加速度计
4516型是一种带集成电子装置的压电式切向加速度计。传感器具有一根带10-32接头的低噪声集成电缆。通过胶粘剂安装在物体上。
使用场景
有限空间内的测量
精细结构的测量
技术参数
| 型号 | 4516 |
| Freq. range | 1 – 20000 Hz |
Temperature | -51 – 121 ℃ |
Weight | 1.5 gram |
Sensitivity | 1.02 mV/ms^-2 |
Residual Noise Level in Spec Freq Range (rms) | 6000 µg |
| Maximum Operational Level (peak) | 500 g |
Connector | 10-32 UNF Female Connector |
Mounting | Adhesive |
| Accessory Included | Integral Cable |
Clip/Stud/Screw included | None |
Output | CCLD |
Unigain | No |
Triaxial | No |
TEDS | Yes |
| Applications | Miniature |
| Unit | mV |
Resonance frequency | 40 kHz |
| Maximum Shock Level (± peak) | 1500 g |
产品发布日期：2026.01.24
Hottinger Brüel & Kjær公司
