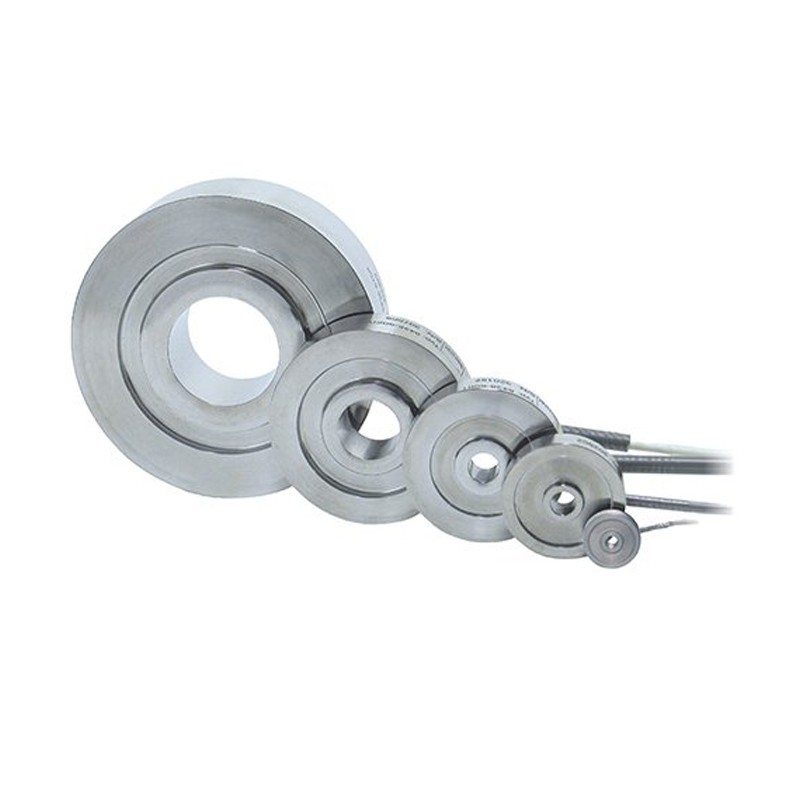

8438系列环形力传感器
紧凑的扁平圆盘设计，小直径，低整体高度，完全焊接的机身，中央间隙孔，不锈钢
产品特点
量程从 0 ～ 5 N 到 0 ～ 200kN
中心穿孔
平盘的设计
不锈钢制
传感器本体采用全焊接工艺
输出信号可标准化为常用数值
技术参数
型号 | 8438 |
量程范围 | 0...5N 0...10N 0...20N 0...50N 0...100N 0...200N 0...500N 0...1kN 0...2kN 0...5kN 0...10kN 0...20kN 0...50kN 0...100kN 0...200kN |
受力方向 | 压力和拉力 |
标准化信号 | 可选配 |
信号输出 | 1mV/V 1.5mV/V 2mV/V 20mV/V 取决于量程范围 |
保护等级 | IP54 |
过载保护 | No |
拉盘 | No |
受力压头 | No |
使用温度范围 | 0...+85°C |
Order Code | Measuring Range | Dimensions [mm] | Thread G | Resonance Frequency [kHz] | ||||||||||||||
D1 | ø D2 | ø D3 | ø D4 | ø D5 | A | H | ø C | L | ø K | M | B | ø T | ||||||
8438-5005 | 0...5N | 12.7 | 11.4 | 10.2 | 5.1 | 2.5 | 3.0 | 3.8 | - | - | 1.2 | 1.2 | - | - | - | 0.4 | ||
8438-5010 | 0 ...10N | 12.7 | 11.4 | 10.2 | 5.1 | 2.5 | 3.0 | 3.8 | - | - | 1.2 | 1.2 | - | - | - | 0.7 | ||
8438-5020 | 0...20N | 25.4 | 21.6 | 20.6 | 6.6 | 5.1 | 6.4 | 7.1 | 4.8 | 8.0 | 1.4 | 3.0 | - | - | - | 1.0 | ||
8438-5050 | 0...50N | 25.4 | 21.6 | 20.6 | 6.6 | 5.1 | 6.4 | 7.1 | 4.8 | 8.0 | 1.4 | 3.0 | - | - | - | 1.1 | ||
8438-5100 | 0 ...100N | 28.0 | 25.0 | 22.0 | 9.0 | 5.5 H8 | 7.0 | 8.0 | 2.2 | 8.0 | 1.9 | 2.5 | - | - | - | 1.2 | ||
8438-5200 | 0 ...200N | 28.0 | 25.0 | 22.0 | 9.0 | 5.5 H8 | 7.0 | 8.0 | 2.2 | 8.0 | 1.9 | 2.5 | - | - | - | 2.0 | ||
8438-5500 | 0 ...500N | 28.0 | 25.0 | 22.0 | 9.0 | 5.5 H8 | 7.0 | 8.0 | 2.2 | 8.0 | 1.9 | 2.5 | - | - | - | 3.7 | ||
8438-6001 | 0...1kN | 38.0 | 29.0 | 25.0 | 13.5 | 7.0 H8 | 9.0 | 10.0 | 3.6 | 8.0 | 3.0 | 3.0 | 3.0 | 33.5 | M 2.5x0,45 | 3.4 | ||
8438-6002 | 0 ...2kN | 38.0 | 29.0 | 25.0 | 13.5 | 7.0 H8 | 9.0 | 10.0 | 3.6 | 8.0 | 3.0 | 3.0 | 3.0 | 33.5 | M 2.5x0,45 | 5.5 | ||
8438-6005 | 0 ...5kN | 38.0 | 29.0 | 25.0 | 13.5 | 7.0 H8 | 9.0 | 10.0 | 3.6 | 8.0 | 3.0 | 3.0 | 3.0 | 33.5 | M 2.5x0,45 | 10.0 | ||
8438-6010 | 0...10kN | 38.0 | 29.0 | 25.0 | 13.5 | 7.0 H8 | 9.0 | 10.0 | 3.6 | 8.0 | 3.0 | 3.0 | 3.0 | 33.5 | M 2.5x0,45 | 15.0 | ||
8438-6020 | 0...20kN | 49.0 | 41.0 | 35.0 | 23.0 | 15.0 H8 | 15.0 | 16.0 | 3.6 | 8.0 | 3.0 | 4.5 | 3.0 | 45.0 | M 2.5x0,45 | 14.0 | ||
8438-6050 | 0 ...50kN | 49.0 | 41.0 | 35.0 | 23.0 | 15.0 H8 | 15.0 | 16.0 | 3.6 | 8.0 | ||||||||
