4027A Series

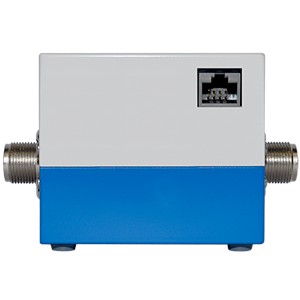

Precision Directional RF Power Sensors
Accuracy and Precision for Critical RF Applications
The 4027A Series Power Sensors from Bird bring superb accuracy and ease of use together for measuring RF power. In semiconductor processing and other precision process applications where accuracy is critical, these sensors are capable of 1% accuracy at the calibrated frequency and power level. Calibration is traceable to the National Institute of Standards and Technology (NIST), providing additional confidence in sensor measurement.
PRODUCT FEATURES- 1% accuracy at specified frequencies and power levels
- Models do not need to be field calibrated before use and only need to be calibrated once every six months
- Plug and Play with the 4421A Multifunction Meter
- Dozens of connector options available
- Calibration traceable to the National Institute of Standards and Technology
- 4421A Multifunction Power Meters
- SCC7 Calibration Cart
- MSCC7 Calibration Cart
MODEL SELECTIONS
| Model | Power Range | Frequency |
|---|---|---|
| 4027A12M | 300 mW - 1 kW | 10 - 15 MHz |
| 4027A250K | 3 W - 10 kW | 250 - 400 kHz |
| 4027A400K | 3 W - 10 kW | 400 - 550 kHz |
| 4027A800K | 3 W - 10 kW | 800 - 950 kHz |
| 4027A2M | 3 W - 10 kW | 1.5 - 2.5 MHz |
| 4027A3M | 3 W - 10 kW | 3 - 5 MHz |
| 4027A10M | 3 W - 10 kW | 10 - 15 MHz |
| 4027A25M | 3 W - 9 kW | 25 - 30 MHz |
| 4027A35M | 3 W - 7.5 kW | 35 - 45 MHz |
| 4027A60M | 3 W - 6 kW | 45 - 65 MHz |
| 4027A100M | 3 W - 4 kW | 95 - 105 MHz |
| 4027A150M | 3.75 W - 3.75 kW | 150 - 170 MHz |
