Installation
1)Use two M10x25 bolt、M10 nut to fix the tail frame and the main machine.
2)The chain must through the chain wheel, lock two end with chain lock when install the chain.Usage and features
a) This machine suitable to be used in solid ®ular products.
Food: instant noodle, biscuit, bread, chocolate, jelly, candy, popsicle, etc
Industrial products: adhesive tape, soap, leechdom, box, tray, hotel article etc.
Hotel article for use: paper、knife and fork、brush for shoe leather、toothbrush and toothpaste.
Steel tube aluminum tube extrusion and so on six meters of strip productsOutstanding Features

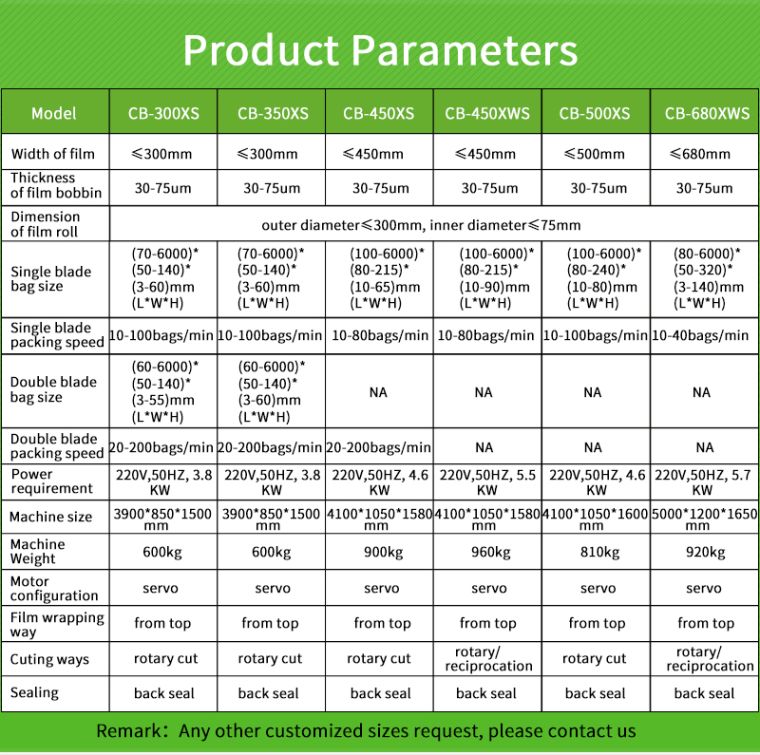

Product specification technical parameter
Output
Up to 200 products per minute
Up to 40 m/min film speed
Product and film characteristic may affect machine outputSize Range
Package cut-off length
50-6000mm
Product width
max.140mm
Product height
max.60mm
Packaging Material Reel
Reel diameter
≤300mm
Core diameter
≤75mm
Packaging material width
max.300mm
Weight
max. 25KG
Connections
Voltage
220V,50HZ
Power usage
3KW
Machine weight
600kg
Machine dimensions
L3900mm*W850mm*H1500mm
Blade cut type
Rotary cutter
Motor configuration
Dual servo
Optional Device
date printer, auto feeder, gas charger, etc.
